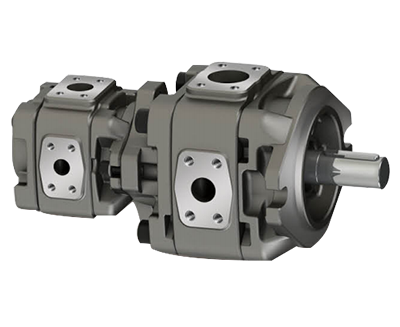

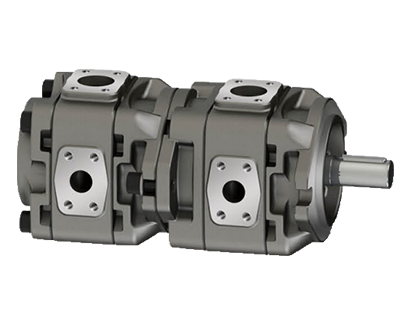

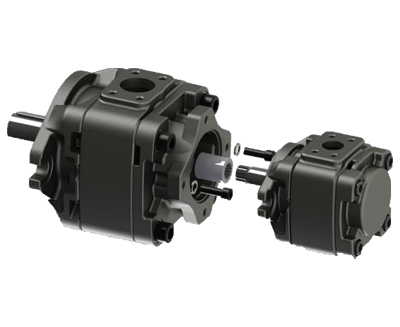

產(chǎn)品手冊The Cobied pump is composed of two single pumps assembled in series,with two independent oil inlet and independent oil outlet,according to the series of two pumps,can be obtained displacement:VG11 series,VG21 series,VG22 series.
The Cobied pump is composed of two single pumps assembled in series,with two independent oil inlet and independent oil outlet,according to the series of two pumps,can be obtained displacement:VG11 series,VG21 series,VG22 series.
| VG11 | -63 | -40 | R | E | W | -A1 |
| Series | Flow code of shaft end pump |
Flow code of cover end pump |
Rotation direction |
Shaft type | Sealing material | Design number |
| VG11 | 25、32、40、50、63 50H、63H |
25、32、40、50、63 50H、63H |
viewes form
Right hand for
Left hand for |
R=SAE |
W=NBR V=FKM |
A1 |
| VG21 | 80、100、125、 145、160 |
25、32、40、50、63 50H、63H |
||||
| VG22 | 80、100、125、 145、160 |
80、100、125、 145、160 |
