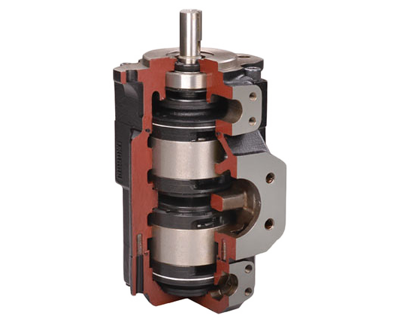

T6,T67,T7系列雙聯泵

產品手冊

適用于塑膠機械、壓鑄機械、冶金機械、煉油機械、壓力機械、工程機械及船帕機械等的高壓高性能柱銷式葉片泵。

產品特點

1、采用柱銷式葉片的結構，其工作壓力更高，噪聲更低，壽命更長。

2、適應液壓介質的粘度范圍大，能在低溫下啟動和高溫下運行。

3、采用雙唇結構的葉片，抗污染能力強，轉速范圍寬。

型號說明

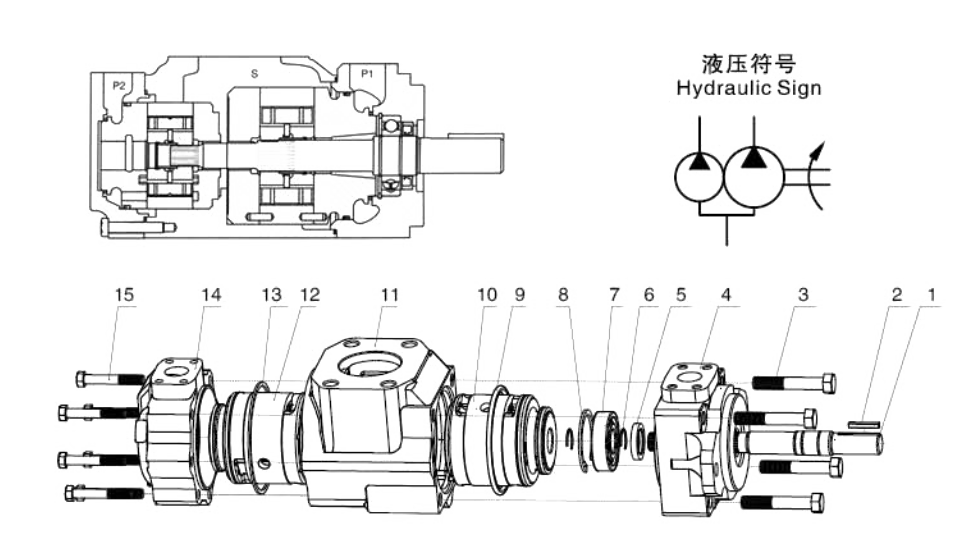

序號 No.	名稱 Part	數量 oty
1	軸shaft	1
2	平健straight key	1
3	外六角螺栓Hexagon head bolt	4
4	前蓋front cover	1
5	油封shaft seal	1

序號NO.	名稱Part	數量 oty
6	軸用鋼絲擋圈cir clip for shaft	2
7	滾動軸承ball bearing	1
8	孔用彈性擋圈cir clip for hole	1
g	矩形密封圈rectangle seal ring	1
10	前泵芯front cartridge	1

序號 No.	名稱Part	數量 aty
11	中泵體middle body	1
12	后泵芯rear cartridge	1
13	矩形密封圈rectangle seal ring	1
14	后蓋rear cover	1
15	外六角螺栓Hexagon head bolt	4

T6CC	S	W	-25	-17	-1	R	02	-C	1	10

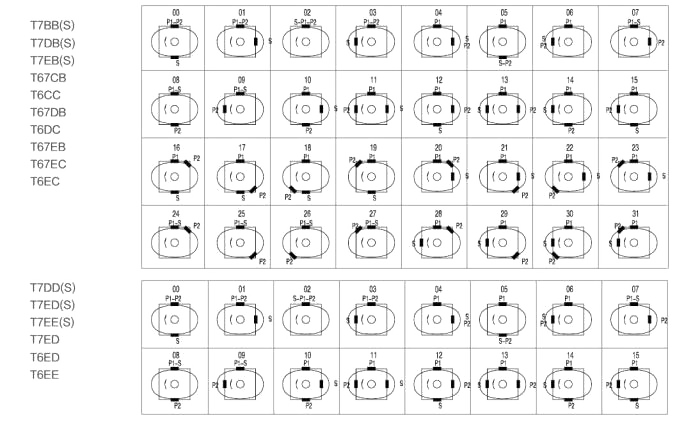

系列號 Series	類別代號 Type Code	別代號 vi Code	軸蠕泵排量代號 Flow-shaft end Pump	善蓋蠕泵排量代號 Flow-cover end pump	軸伸形式 Shaft type	mHr Rotation	Port_ tions	設計號│ Design number	密封等級 Sealing Level	油口尺寸 Port dimensions
17B8	無:采用 Iso 3019安裝法蘭 No:usE iso 3019 llnstallation Flange S:采用SAE cJ744安裝法蘭 S:usE SAECJ744 instalation flange	無此項 No	B02,B03,B04,B05,B06, B07,B08,B10,B12,B15, B20	B02,B03,B04,B05,B06, B07,B06,B10,B12,B15, B20	見軸伸尺寸 See size of shar	從泵的輸皓看 Viewed from shalt end of pump R-順時 旋轉 right hand tor clockwise L-迂時針旋轉 loft hand for courler- clockwiso	見下圍 see picture below	C	1-S1. 丁睛橡股 NBR NiErile rubber 5-S5. 氟幛腔 Fluororubber	00,01,M0.M1 見安裝連接尺寸 Soe instalafon dimensions
17DB			B14/B17,B20,B22,B24, B28,B31,B35,B38,B42	B02,B03,B04.B05,B06, B07,B08,B10,B12,B15						00,01,M1.M0 菜安裝謹接尺寸 soe installation dmensions
170D			B14,B17,B20,B22,B24, B28,B31,B35,B38,B42	B14,B17,B20,B22,B24, B28,B31,B35,B38,B42						無此選項 No
17EB			042,045,050,052,054, 057.062,066,072,085	E02,B03,B04,B05,B06, B07,B0G,B10,B12,B15, B20
17ED			042,045.050,052,054, 057,062,066,072,085	B14,B17.B20,B22,B24, B28,B31,B35,B38,B42
17EE			042,045,050,052,054, 057,062,066,072,085	042,045,050,052,054, 057,062,066,072,085
T67CB	無: 工業用型 M: 車用型 P: 車用型雙重油封 NO: industriat type M:truick type P:truck type doubile soal kits	w: 重型軸 Hoavy str keyed shaft	003/B03,005/B05,006/ B06,008/B08,010/B10, 012/B12,014B14,0171 B17,020/B20,022/B22, 025/B25,028/B28,031/B31	B02,B03,B04.B05,B06, B07,B08,B10,B12,B15						11,M1
			003/B03,005/B05,006, B06,008/B08,010/B10, 012/B12,014/B14,0171 B17,020/B20,022/B22, 025B25,028/B28,031/B31	003/B03,005/B05,006 B06,008/B08,010/B10, 012B12,014B14,0171 B17/020 E20,022/B22, 025/B25,028/B28,031/B31						00,01,10.11, M0,M1,W0,W1 見安裝連接尺寸 soe instal aton dimansions
T67DB			014/B14.017/B17,020/ B20,024B24,028B28, 00B31,0357B35,03B1 B38,042B42,045/B45, 050B50,061	B02,B03,B04,B05,B06, E07,B0G,B10,B12,B15, B20						00,01,M0,M1 見安裝連接尺寸 See instalation dimensions
T67DC T6DC			B14.B17.B20,B22,B24. B28,B01,B35,B38,B42	003/B03,005/B05,006 B06,008/B0a,010B10, 012/B12,014B14,017 B17,020/B20,022/B22, 025/B25,028/B28,031/B31
T67DC T6DC			014/B14,017/B17,020r B20,024B24,028B28, 00B31,0357/B35,03B1 B38,042/B42,045/B45, 050/B50,061	003/B03,005/B05,006 B06,006/B08,010/B10, 012/B12,014B14,017 B17,020/B20,022/B22, 025/B25,028/B28,031/B31
T67EB			042,045,050,052.057, 062,066,072,085	e02,B03,B04B05,B06, E07B06,B10,B12, B15,B20						無此選項 No
T6EC			042,045,050,052,057. 062,066,072,085	003 B03,005/B05,006 B06,008/B08,010/B10, 012/B12,014/B14,0171 B17,0207/B20,022/B22, 025/B25,028/B28,031/B31
T67EC			042,045.050,052.057. 0C2,066,072,085	003,B03,005,B05,006 B06,008/B08,010/B10, 012/B12,014/B14,017 B17,020/B20,022/B22, 025/B25,028/B28,031/B31
T6ED			042,045.050,052,057, 062,066,072,085	014.B14,017/B17,020/ B20,024B24,028/B28, 031B31,035B35,03a B38,042B42,045/B45. 050B50,061
T6EE			042,045,050,052,057, 062,066,072,085	042,045,050,052,057, 062,066,072.085
