產品特點

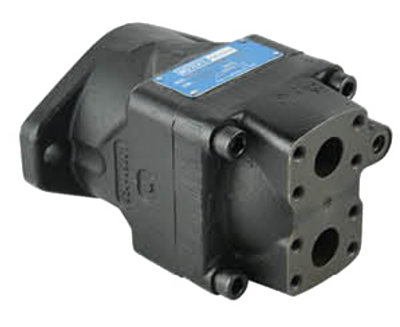

M4系列葉片馬達
M4系列葉片馬達
產品手冊| M4C | 67 | -1 | N | 00 | A | 1 | 2 |
| 系列號 Series |
排量ml/r Displacement |
軸伸形式 Shaft type |
轉向 Rotation |
油口位置 Port positions |
設計號 Design number |
密封等級 Sealing Level |
油口 oil port |
| M4C | 024(24.2) |
1-平鍵軸
|
N:雙向
|
見下圖 See picture below |
1-丁腈橡膠
|
見下圖 See picture below |
|
| 027(28.2) | |||||||
| 031(34.5) | |||||||
| 043(46.5) | |||||||
| 055(58.8) | |||||||
| 067(71.1) | |||||||
| 075(80.1) | |||||||
| M4D | 062(65.1) | ||||||
| 074(76.8) | |||||||
| 088(91.1) | |||||||
| 102 (105.5) | |||||||
| 113(116.7) | |||||||
| 128(132.4) | |||||||
| 138(144.4) | |||||||
| M4E | 153(158.6) | ||||||
| 185(191.6) | |||||||
| 214(222.0) |
